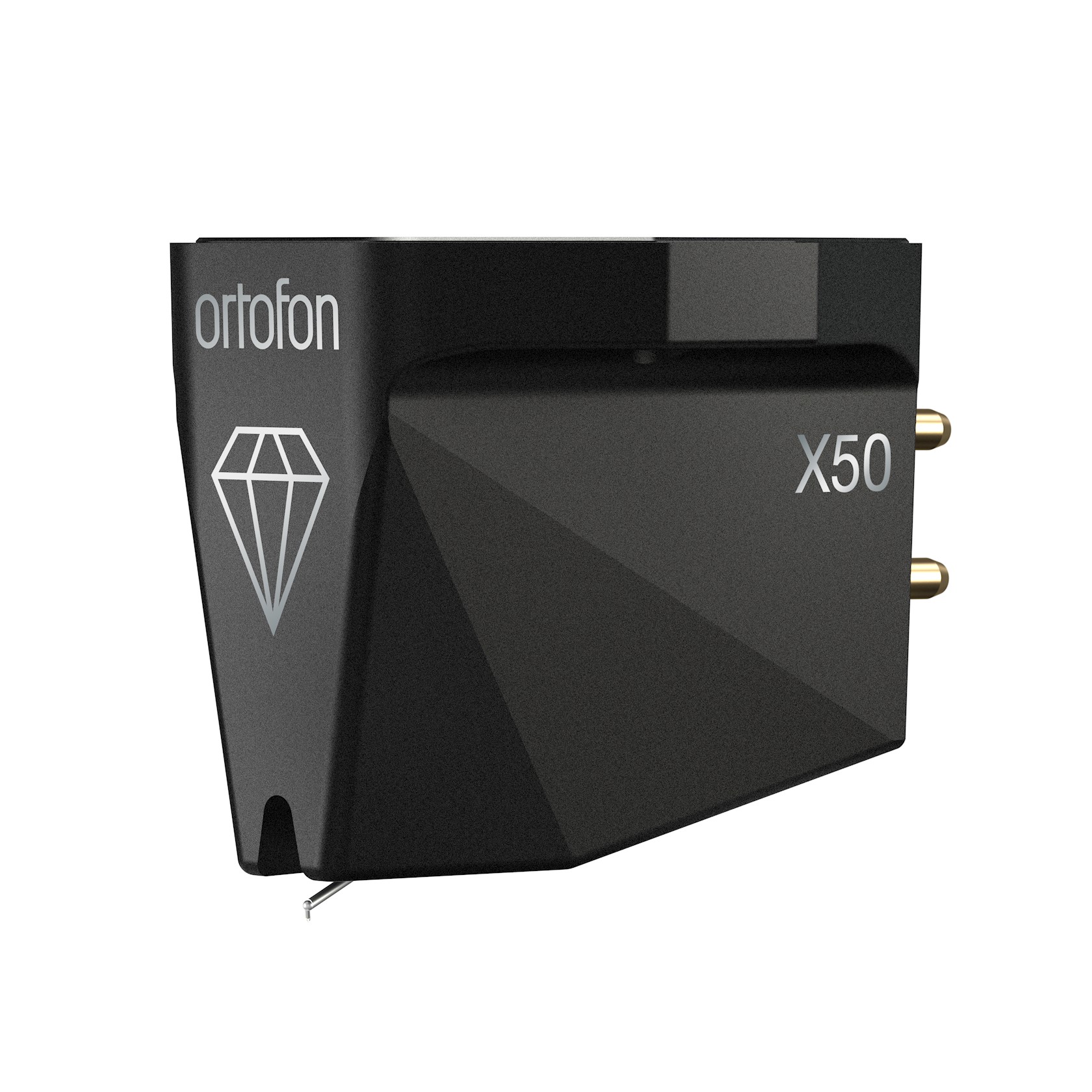

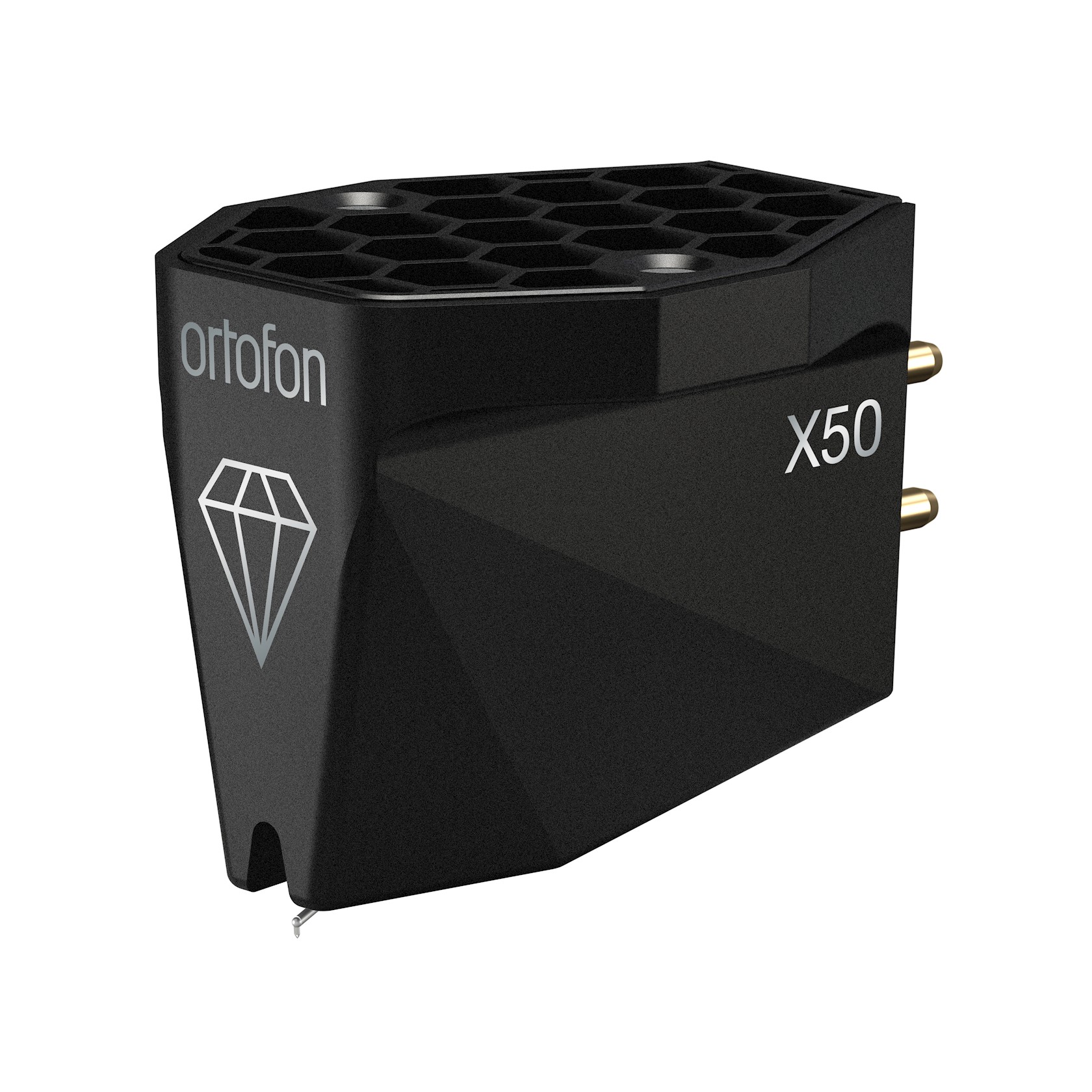

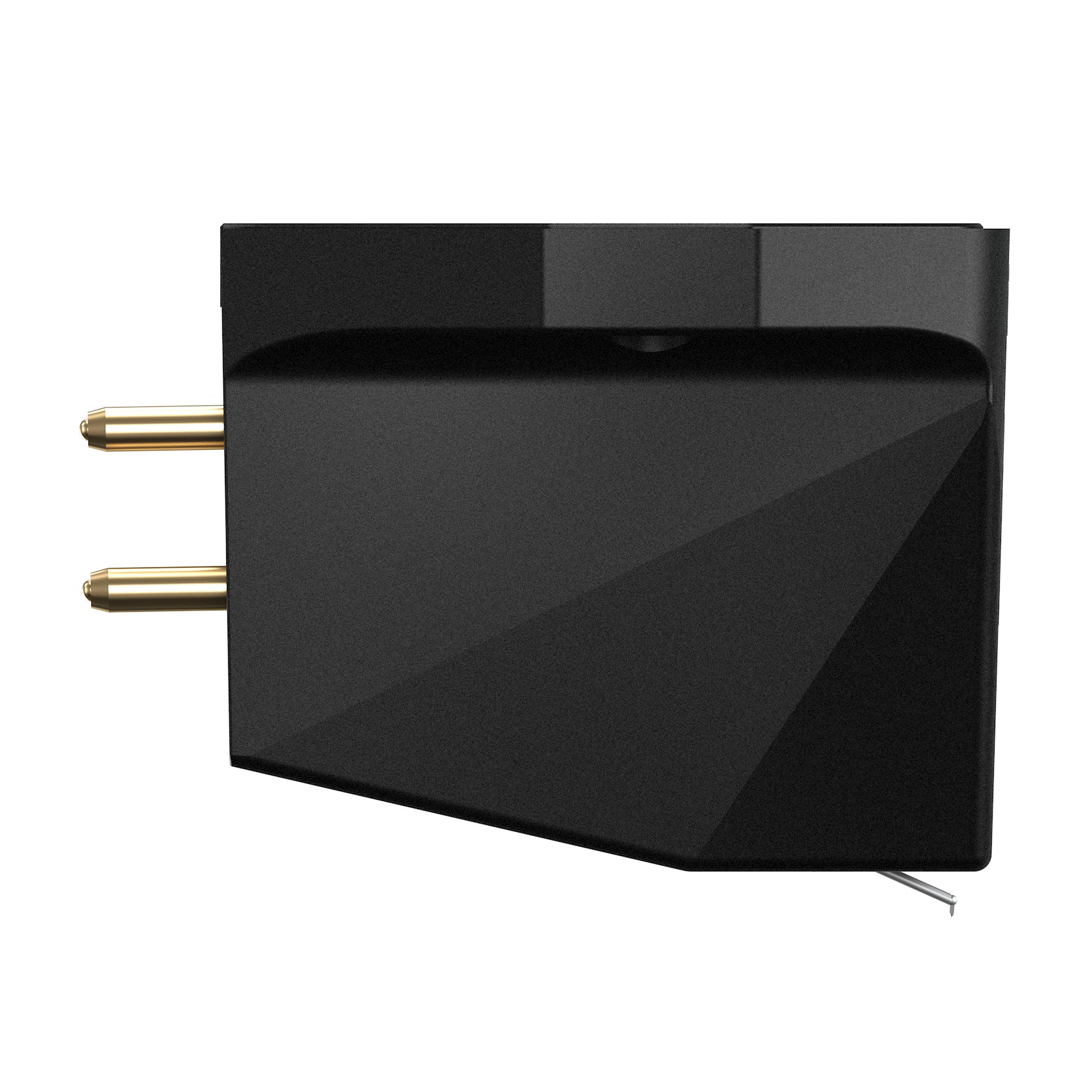

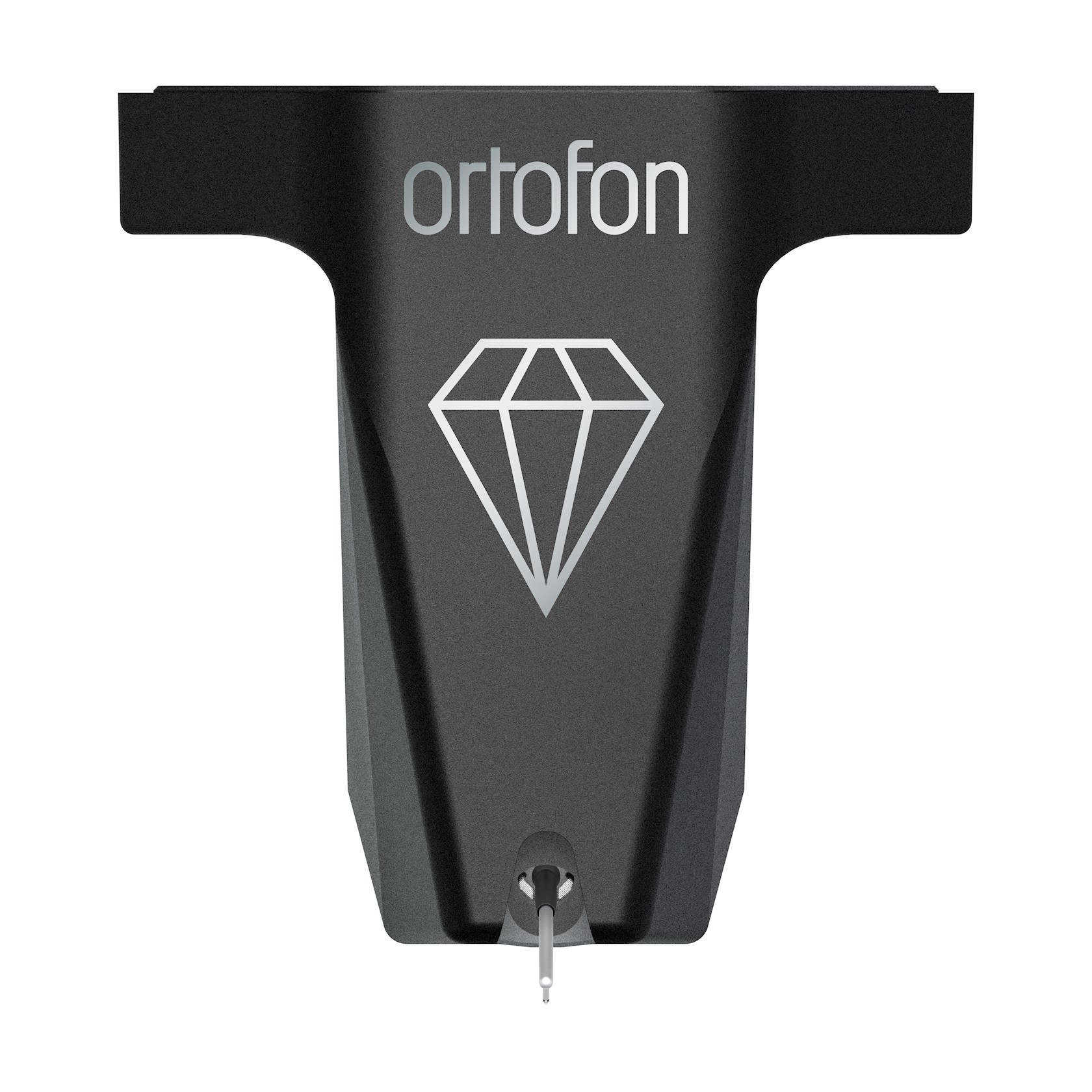

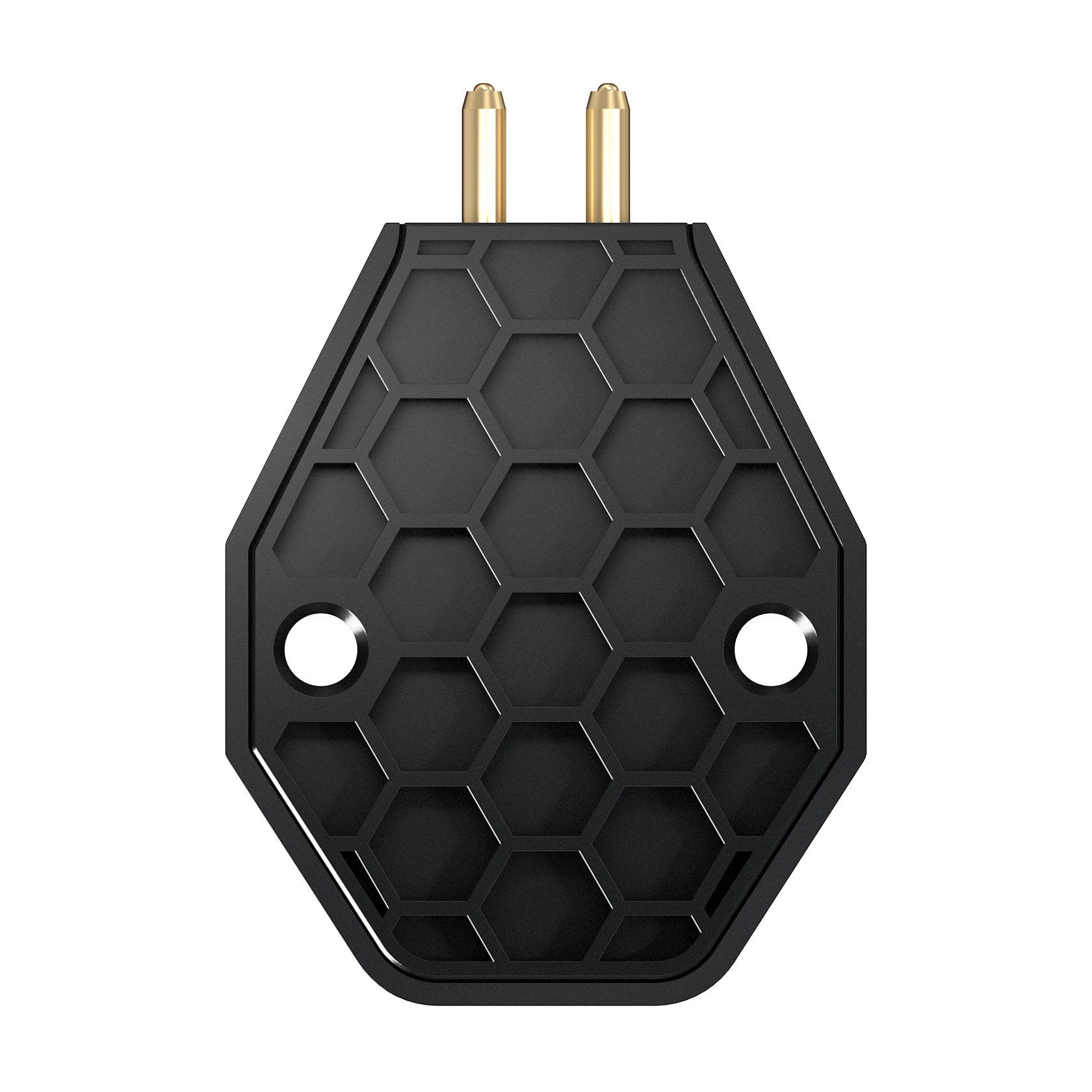

Type: MC X50

  • Ortofon moving coil cartridge

With the MC X50, the MC X Series reaches its most advanced implementation. Building on the established platform, the MC X50 introduces a refined combination of stylus and cantilever, designed to achieve a higher level of control and consistency in groove tracing.

At the core is a nude Micro Ridge diamond, engineered for precise contact with the groove and accurate tracing of fine modulations, particularly at high frequencies and across inner grooves. This is paired with a boron cantilever, providing high stiffness with low moving mass for fast and controlled response to signal variations.

A rubber suspension, designed and produced in-house by Ortofon using a newly developed compound specific to the MC X50, plays a central role in its performance, working in balance with the Micro Ridge stylus and boron cantilever to ensure stable tracking and consistent groove contact.

  • Channel balance at 1 kHz: 0.5 dB
  • Output voltage at 1 kHz, 5cm/sec: 0.4 mV
  • Channel separation at 1 kHz: 28 dB
  • Frequency response 20 Hz - 20 kHz: +/-1 dB
  • Compliance, dynamic, lateral: 14 μm/mN
  • Cantilever material: Boron
  • Stylus type: Nude Shibata
  • Stylus tip radius: r/R 2.5/75 μm
  • Coil system: Quad coils
  • Tracking force, recommended: 2.0 grams
  • Internal impedance, DC resistance: 6 Ω
  • Coil wire material: High-purity silver
  • Cartridge weight: 8.6 grams
  • Recommended load resistance: > 50 Ω
  • Stylus profile: Micro Ridge
