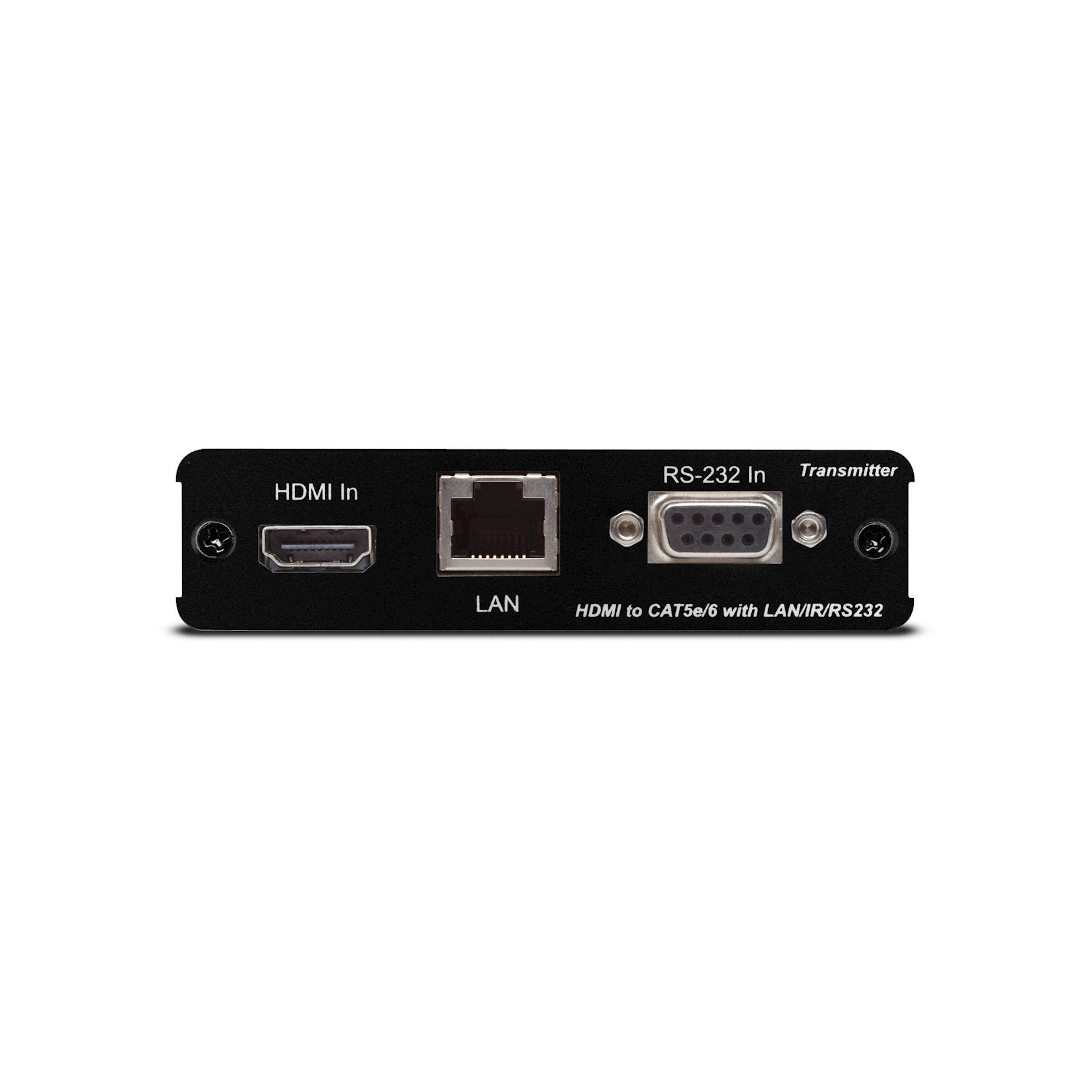

Type: PU-507TX

5-Play HDBaseT1 (100m) Transmitter with LAN & PoC

€ 388.20

Website: https://cypeurope.com/

Send your information request

Description
Specifications

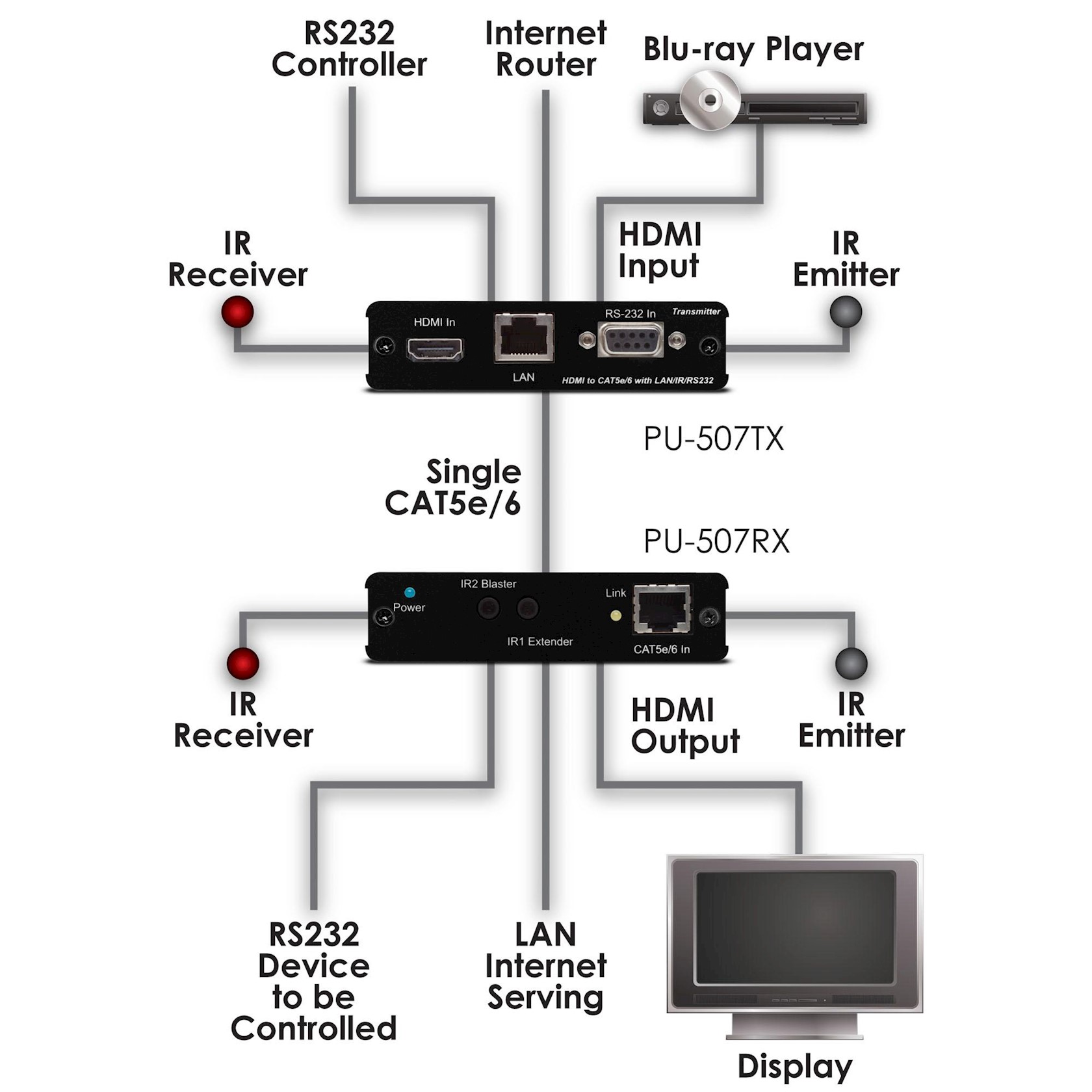

The PU-507TX Transmitter allows uncompressed HDMI signals and IP data to be transmitted over a Single CAT5e/6/7 cable. This device features full 5-Play convergence allowing the distribution of Video, Audio, LAN serving, Power over Ethernet (PoC), RS-232 and 2-way IR control functionality over the same CAT5e/6/7 cable. These combined HDMI and control signals can be transmitted up to lengths of 100 metres.

HDCP 2.2 Compliant
Supports all v1.4 HDMI resolutions plus 4k.
Supports uncompressed video/audio up to 10.2Gbps
Supports resolutions VGA~WUXGA, 480i~1080p, 4K UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0) dependent upon the output display’s EDID settings
HDMI, HDCP, & DVI compliant
Supports HDCP repeating and CEC functions
4K/2K & 4K UHD signals can be transmitted up to 70m via CAT5e/6 and 100m via CAT6a/7
1080p signals can be transmitted up to 100m via CAT5e/6/6a/7
Uncompressed video 1080p, 60Hz, 48bits
Audio support up to 7.1CH & Dolby TrueHD, DTS-HD
5-Play™ convergence: HDMI, LAN, POE & Control (IR & RS232)
Supports 3D signals
Dimensions 102mm [W] x 25mm [H] x 102mm [D]
