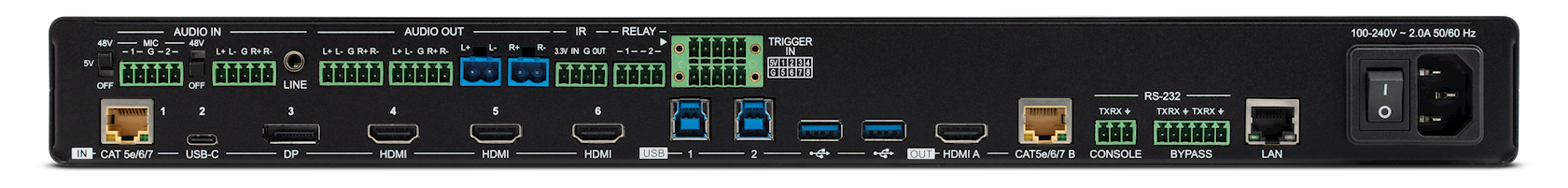

The EL-8400VA Presentation Matrix is a multi-format switching matrix with integrated scaling featuring HDMI, DisplayPort, USB Type-C, andHDBaseT I/O. The selected source (video & audio) can be transmitted with HDMI or HDBaseT2 technology over Cat.6A cable up to 100 meters along with bi-directional Ethernet, RS-232, USB, and IR as well as providing 48V PoH power to compatible HDBaseT2 transmitter (PUV-2606TX) and receiver (PUV-2010RX) .
The HDMI, DisplayPort and USB-C ports support resolutions up to 4K@60 (4:4:4, 8-bit) while the HDBaseT output supports automatic down-conversion of 4K60(4:4:4) sources to 4K60(4:2:0).

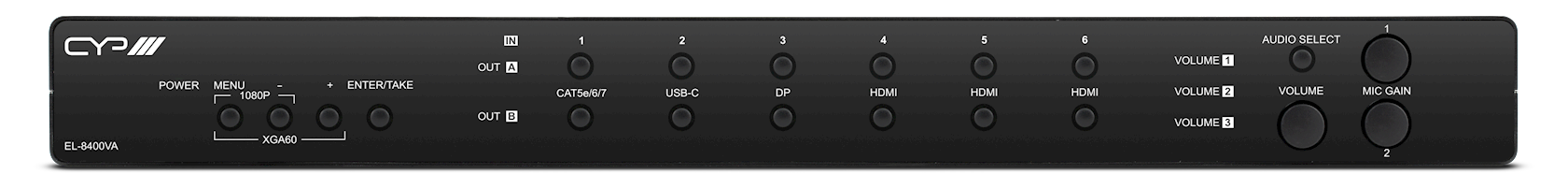

The EL-8400VA also includes multiple analogue stereo audio inputs and two microphone inputs, a stereo 20W per channel amplifier and balanced stereo audio output complete the audio I/O. The built-in DSP audio mixer function allows the user to mix audio from any analogue input with the microphone input for presentation or lecture usage. The ability to switch back and forth between mixed and non-mixed audio greatly simplifies the presentation experience. Standard control is available via front panel buttons with selectable volume control knob. Standard On-Screen Display(OSD), RS-232, Telnet, and WebGUI control is available making it exceptionally versatile.
