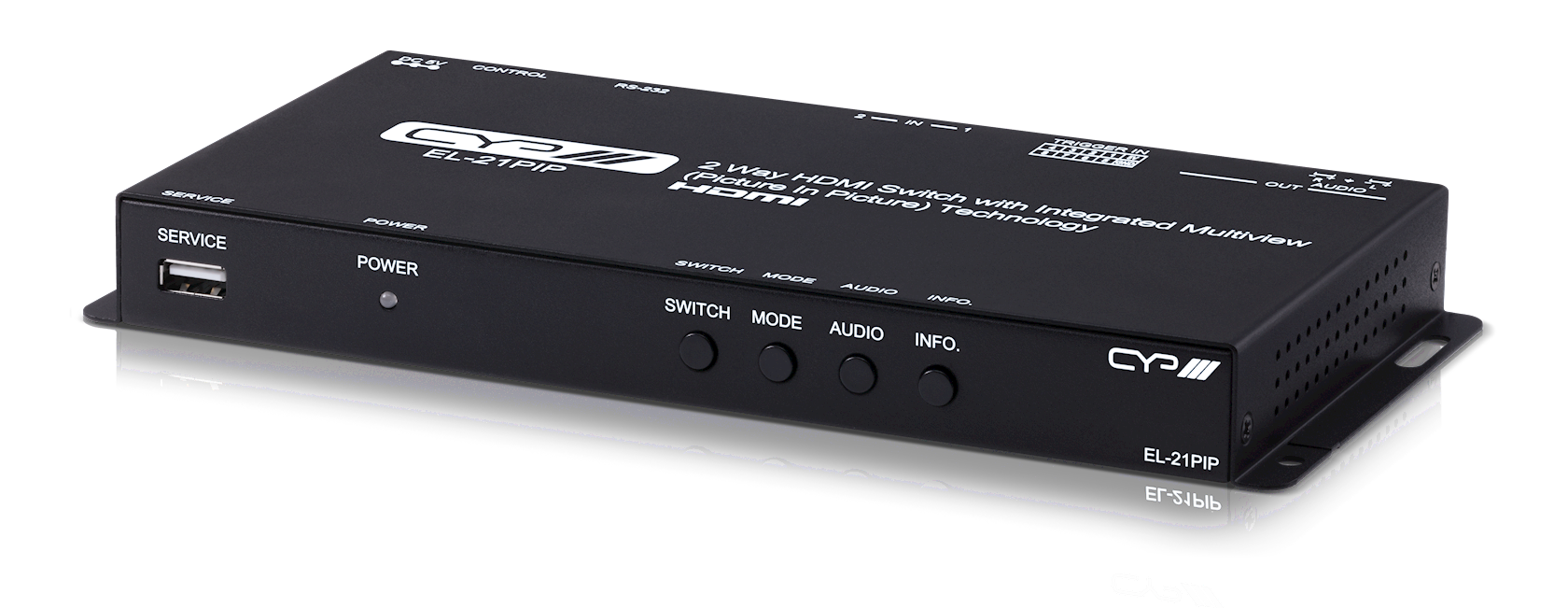

Type: EL-21PIP

  • 2 Way HDMI Switch with Integrated Multiview (Picture In Picture) Technology

The EL-21PIP is an advanced 2 Way HDMI switch with integrated Multi-view (Picture In Picture) technology. This plug and play solution offers advanced control and display options for the integration of 2 sources onto a single display. The EL-21PIP is the perfect cost effective solution for integrating a combination of sources into any single display within any commercial or residential AV installation.

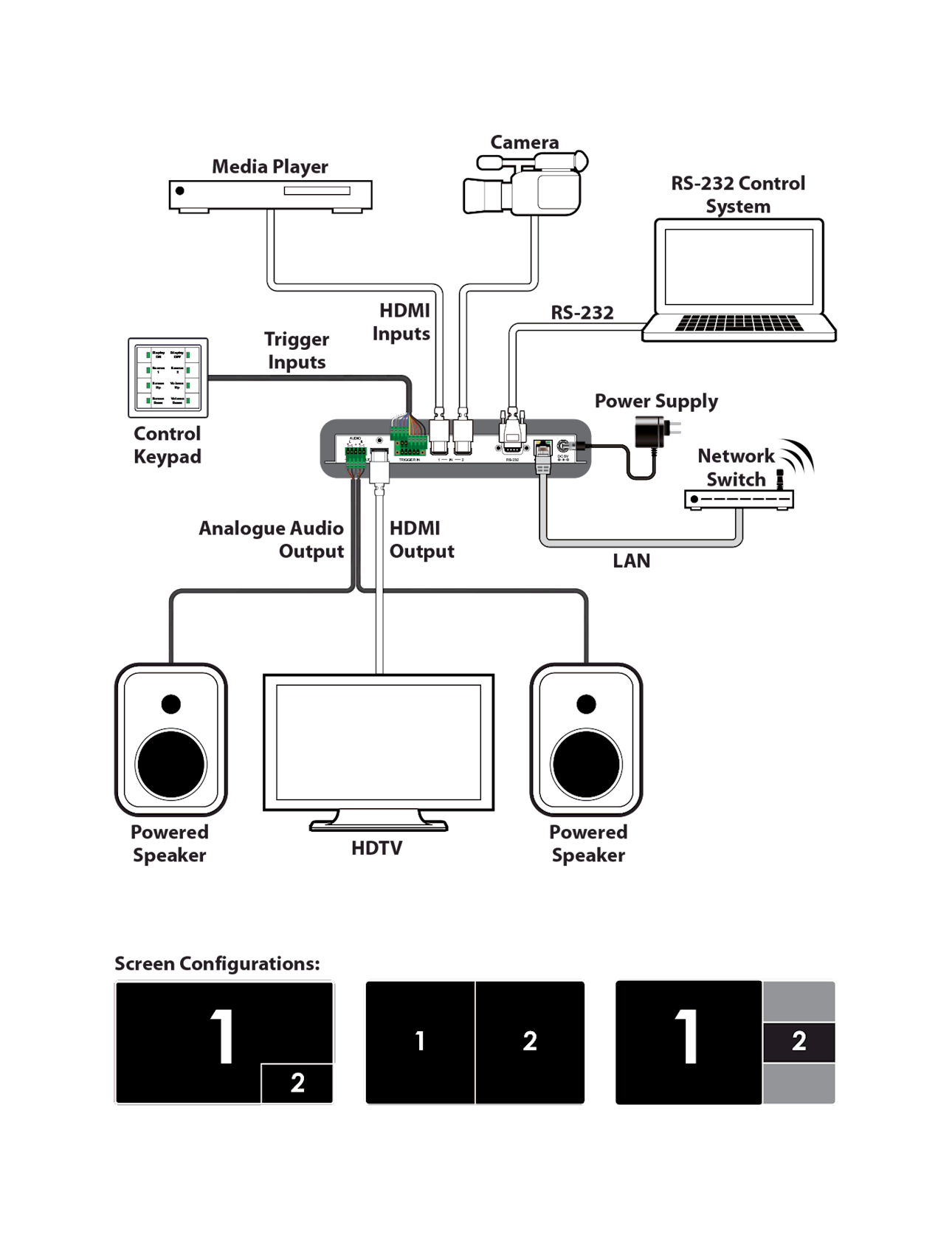

  • 3 Way multiview window configuration
  • Free positioning mode
  • Bitmap logo upload and display
  • Input supports HD resolutions upto 4K @ 30Hz (4:4:4, 8-bit)
  • Output supports HD resolutions up to 1080p @60Hz
  • Chromakey support
  • OSD, WebGui, Telnet, RS-232 and IR Remote Control
  • Direct Trigger Input (Compatible with CR-TG1)
  • De-embedded audio output
  • RAX-600 Compatible
  • Dimensions : 160mm [W] x 31mm [D] x 25mm [H]
