Type: AU-11CD

HDMI Audio De-Embedder (5.1) with built in Repeater

€ 196.00

Website: https://cypeurope.com/

Send your information request

Description
Specifications

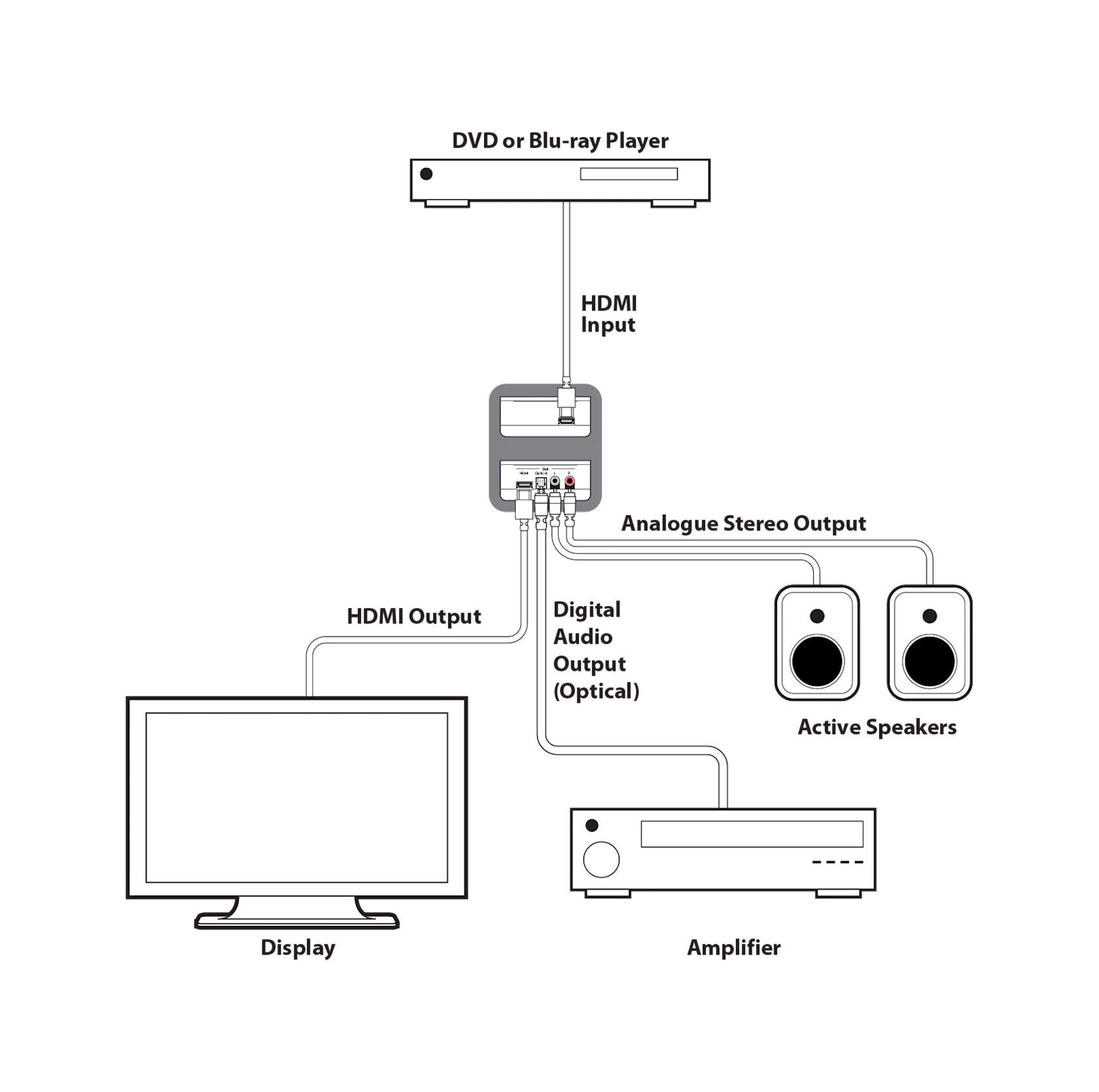

The AU-11CD is an advanced solution for repeating HDMI with integrated Audio de-embedding, up to 5.1. Connect the AU-11CD between your source and display via HDMI, and select the audio format required.

Compliant with v1.3 HDMI, HDCP 1.2 and DVI 1.0
Supports HDMI Sample Rates up to 192 kHz
Supports Optical Sample Rate up to 48 kHz
Supports TMDS clock frequency rate 225MHz
Supports high-bit-rate (HBR) audio
Supports resolutions of 1080P up to cable lengths of 10m either side of the device
Supports built-in audio EDID switch of LPCM2, 5.1/7.1 or Bitstream
Supports 3D signals
Dimensions :
