Type: W1L

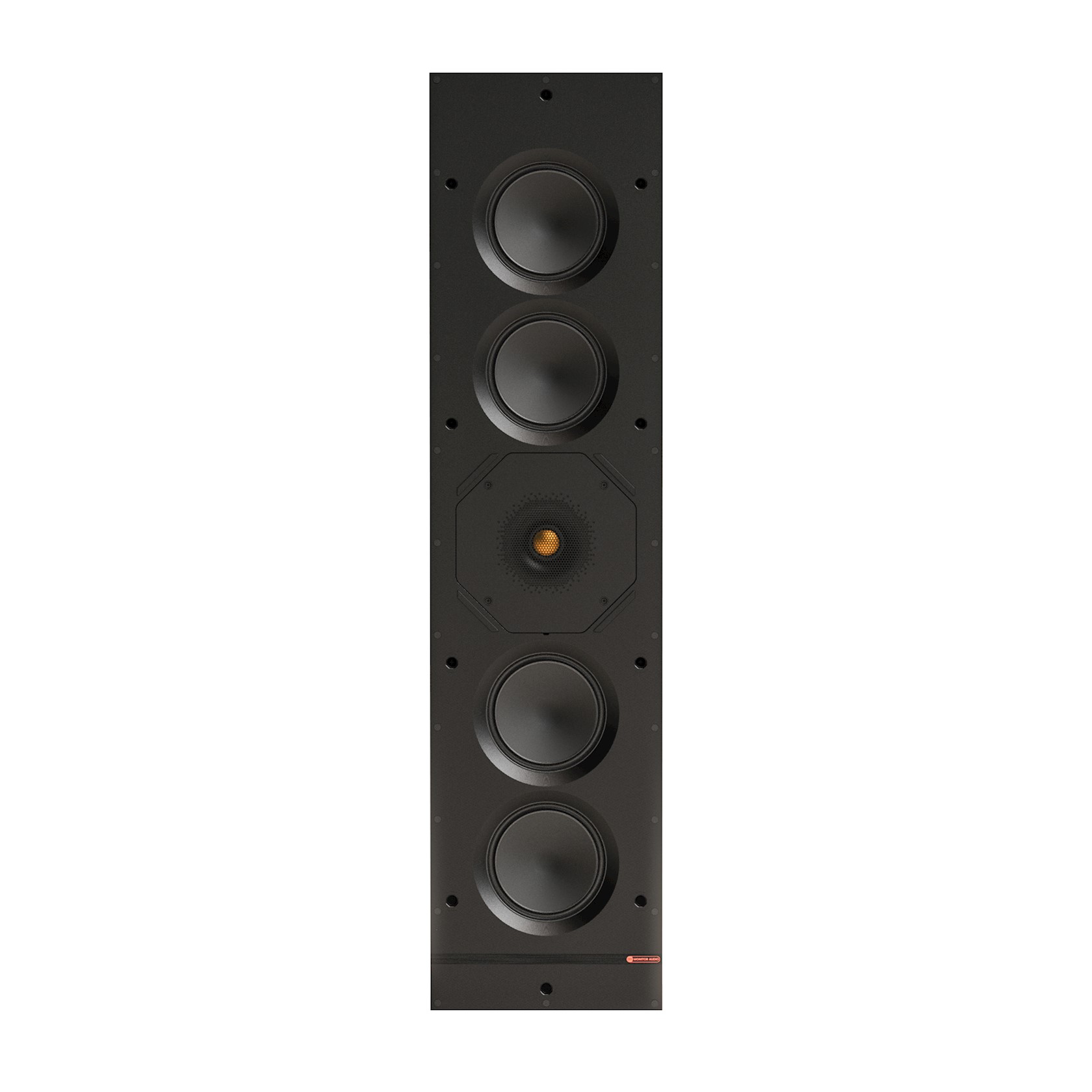

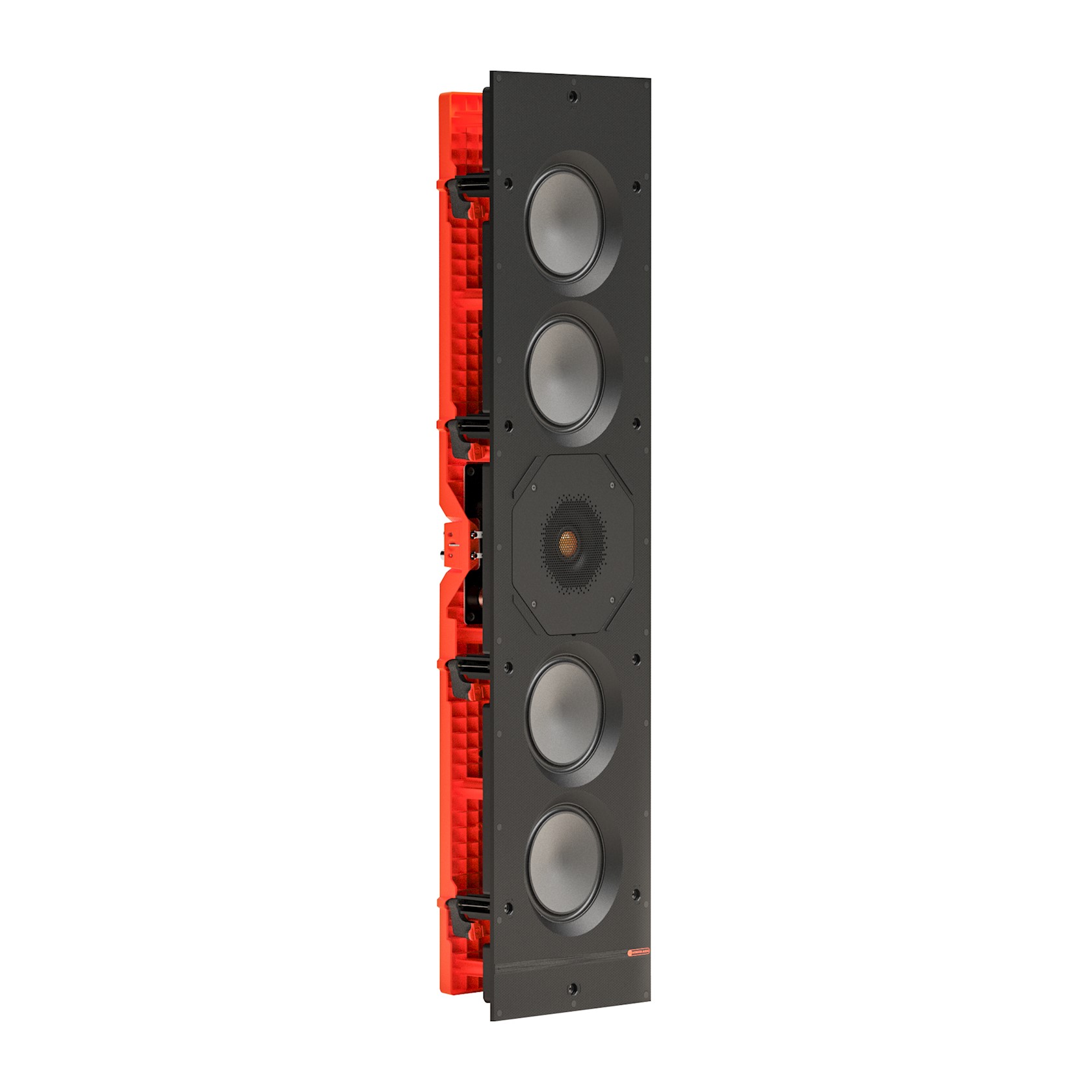

  • Monitor Audio Creator in-wall large speaker (piece)

This large-sized Tier 1 in-wall loudspeaker is a two-way model featuring four C-CAM mid-bass drivers and a C-CAM tweeter. It has a cut-out dimension of 880 x 202 mm and a revolutionary Quick-Link speaker cable connector and Tri-Grip II for quick, simple, reliable, and strong installation and fitting.

Features at a glance:
Ideal for cost-effective installations  |  Two-way design  |  1 x 1" C-CAM tweeter with UD Waveguide  I  4 x 5" C-CAM mid-bass driver  |   Quik-Link speaker cable connector for quicker installation  |  Tri-Grip II for easy and secure fitment

  • System Format: 2-Way
  • Frequency Response, Installed (-6 dB): 38 Hz – 30 kHz
  • Nominal Impedance: 6 Ohms
  • Minimum Impedance (20 Hz – 20 kHz): 5.2 Ohm @ 13 kHz
  • Sensitivity (2.83 Vrms @ 1 m, Installed): 88 dB
  • Maximum Peak SPL (AES75, Z-Weighted): 114 dB
  • Continuous Power Handling (CTA 426-B): 100 W
  • Recommended Amplifier Power (RMS, Music Signal): 80 – 300 W into 4 Ohms, 30 – 150 W into 8 Ohms
  • Drive Unit Complement: 4 x 5" (127 mm) C-CAM Mid-Bass Driver, 1 x 1" (25 mm) C-CAM Tweeter
  • Crossover Frequency: LF/HF:  2.7 kHz
  • Mounting Depth: 85 mm
  • Cut-Out (L x W): 880 x 202 mm
  • External Dimensions with All Cccessories Fitted (H x W x D): 909 x 231 x 93 mm
  • Weight (Each): 6.96kg
  • Sold As: Single Unit
