Type: W2L

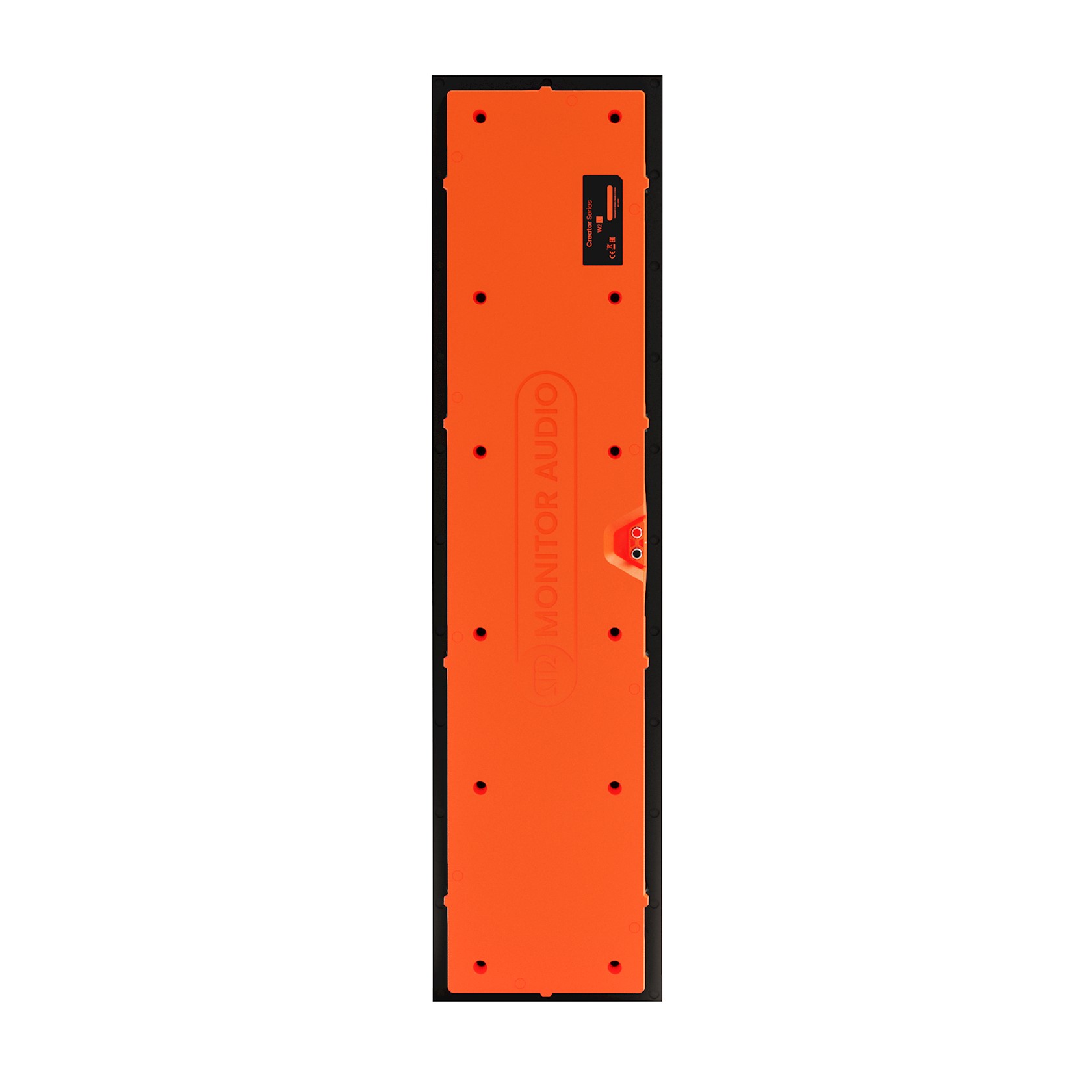

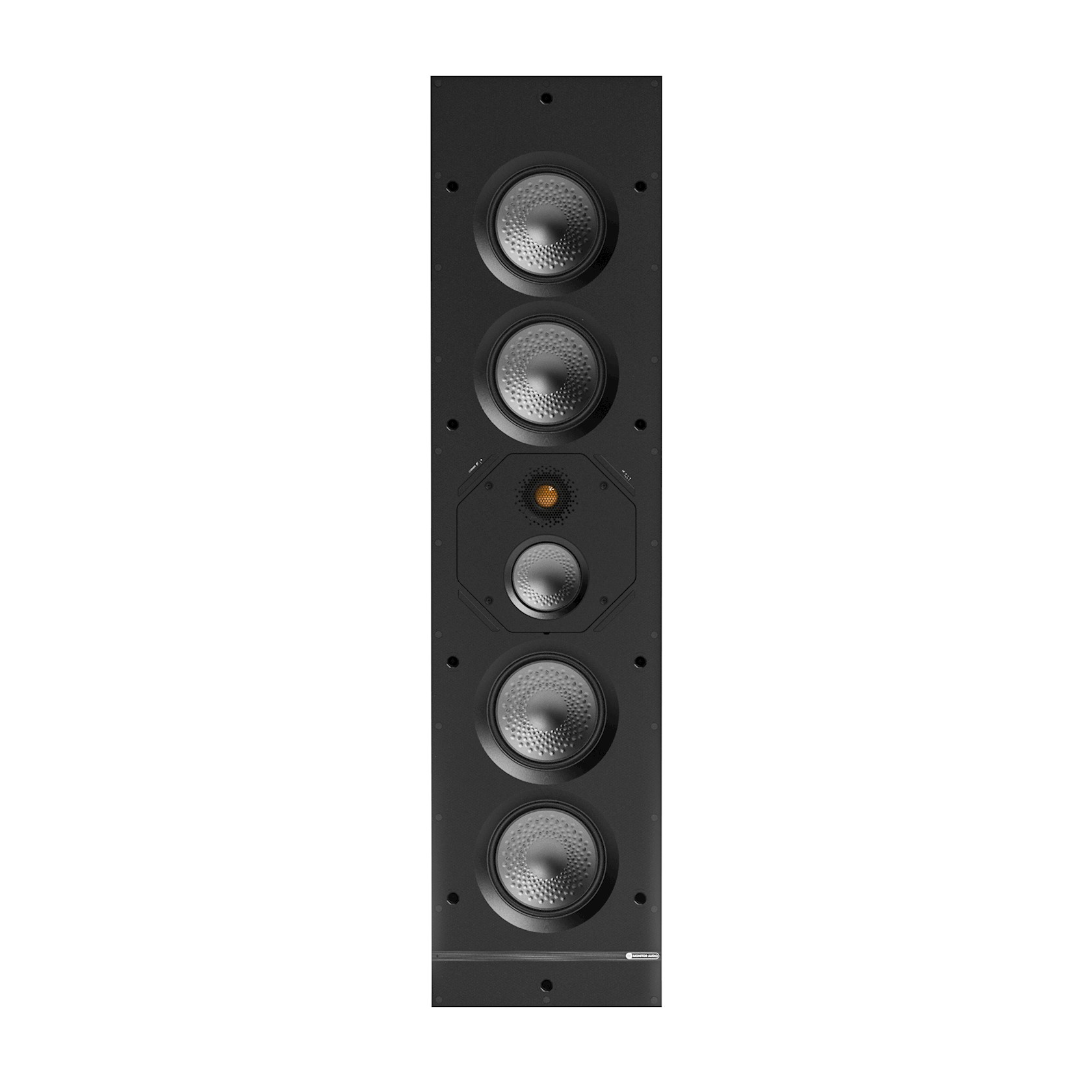

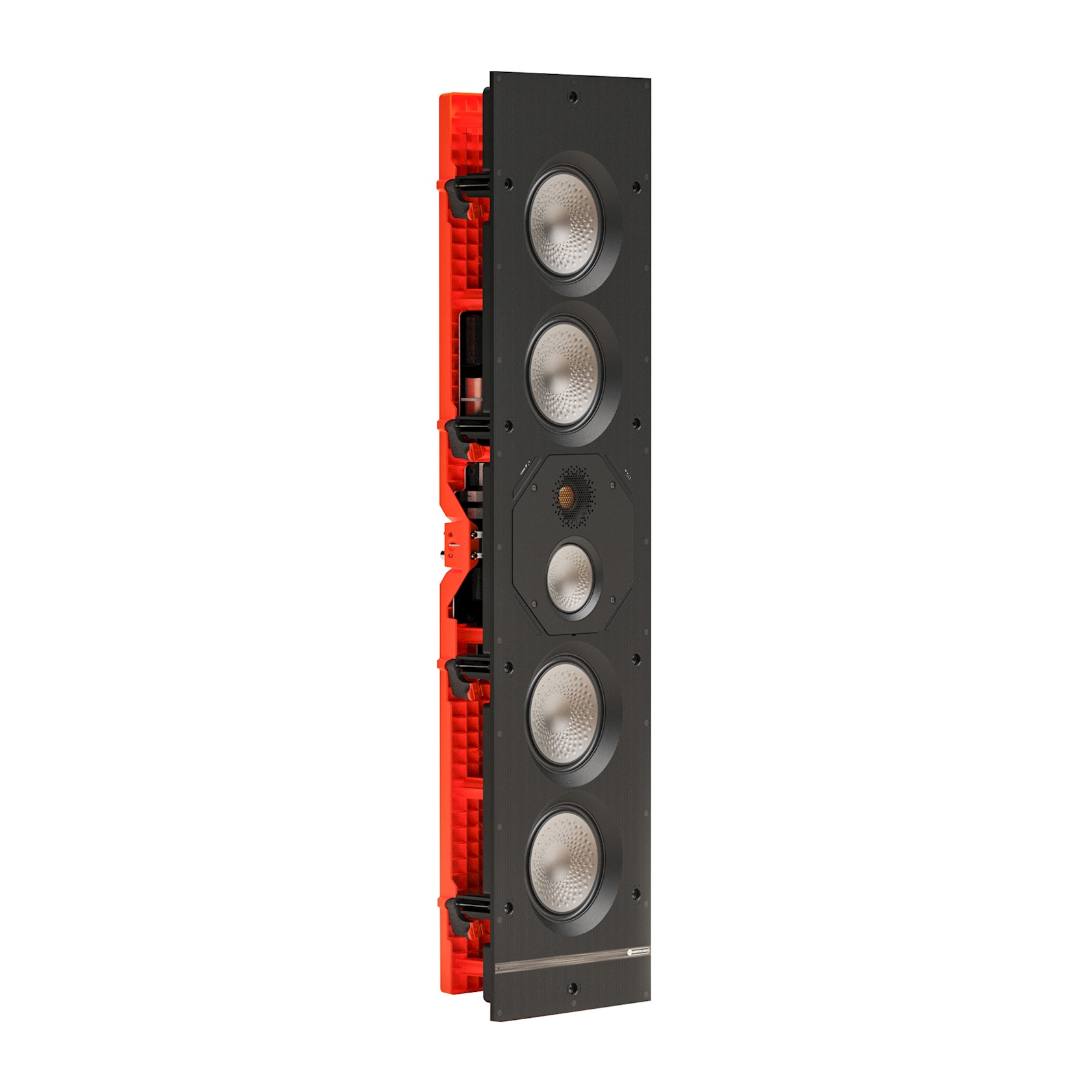

  • Monitor Audio Creator in-wall large speaker (piece)

This large-sized Tier 2 in-wall loudspeaker is a three-way model featuring four RST II bass drivers, an RST II midrange driver, and a C-CAM tweeter. It has a cut-out dimension of 880 x 202 mm and a revolutionary Quik-Link speaker cable connector and Tri-Grip II for quick, simple, reliable, and strong installation and fitting.

Features at a glance:
Ideal for installations where pristine acoustic performance is required | Three-way design  |  1 x 1" C-CAM tweeter with UD Waveguide II for lifelike sound  |  1 x 3" RST II midrange driver  |  4 x 5" RST II bass drivers  |  Quik-Link speaker cable connector for quicker installation   |  Tri-Grip II for easy and secure fitment

  • System Format:3-Way
  • Frequency Response, Installed (-6 dB): 38 Hz – 35 kHz
  • Nominal Impedance: 4 Ohms
  • Minimum Impedance (20 Hz – 20 kHz): 4.2 Ohm @ 1.1 kHz
  • Sensitivity (2.83 Vrms @ 1 m, Installed): 88 dB
  • Maximum Peak SPL (AES75, Z-Weighted): 117 dB
  • Continuous Power Handling (CTA 426-B): 225 W
  • Recommended Amplifier Power (RMS, Music Signal):110 – 450 W into 4 Ohms, 50 – 225 W into 8 Ohms
  • Drive Unit Complement: 4 x 5" (127 mm) RST II Bass Driver, 1 x 3" (76 mm) RST II Midrange Driver, 1 x 1" (25 mm) C-CAM Tweeter
  • Crossover Frequency: LF/HF: 700 kHz, MF/HF: 3 kHz
  • Mounting Depth: 85 mm (3 3/8")
  • Cut-Out (L x W): 880 x 202 mm
  • External Dimensions with All Cccessories Fitted (H x W x D): 909 x 231 x 93 mm
  • Weight (Each): 7.77 kg
  • Sold As: Single Unit
