Type: W3L

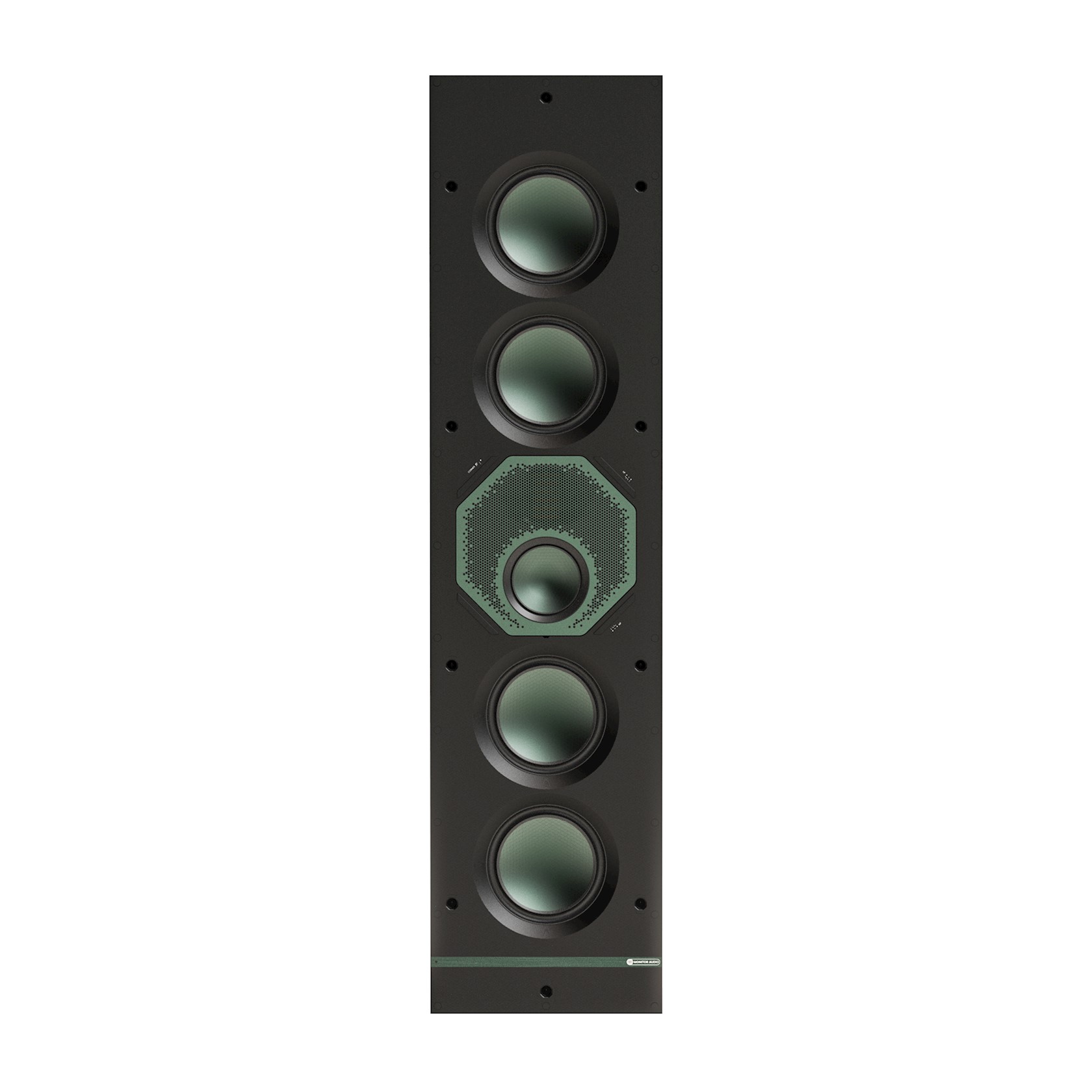

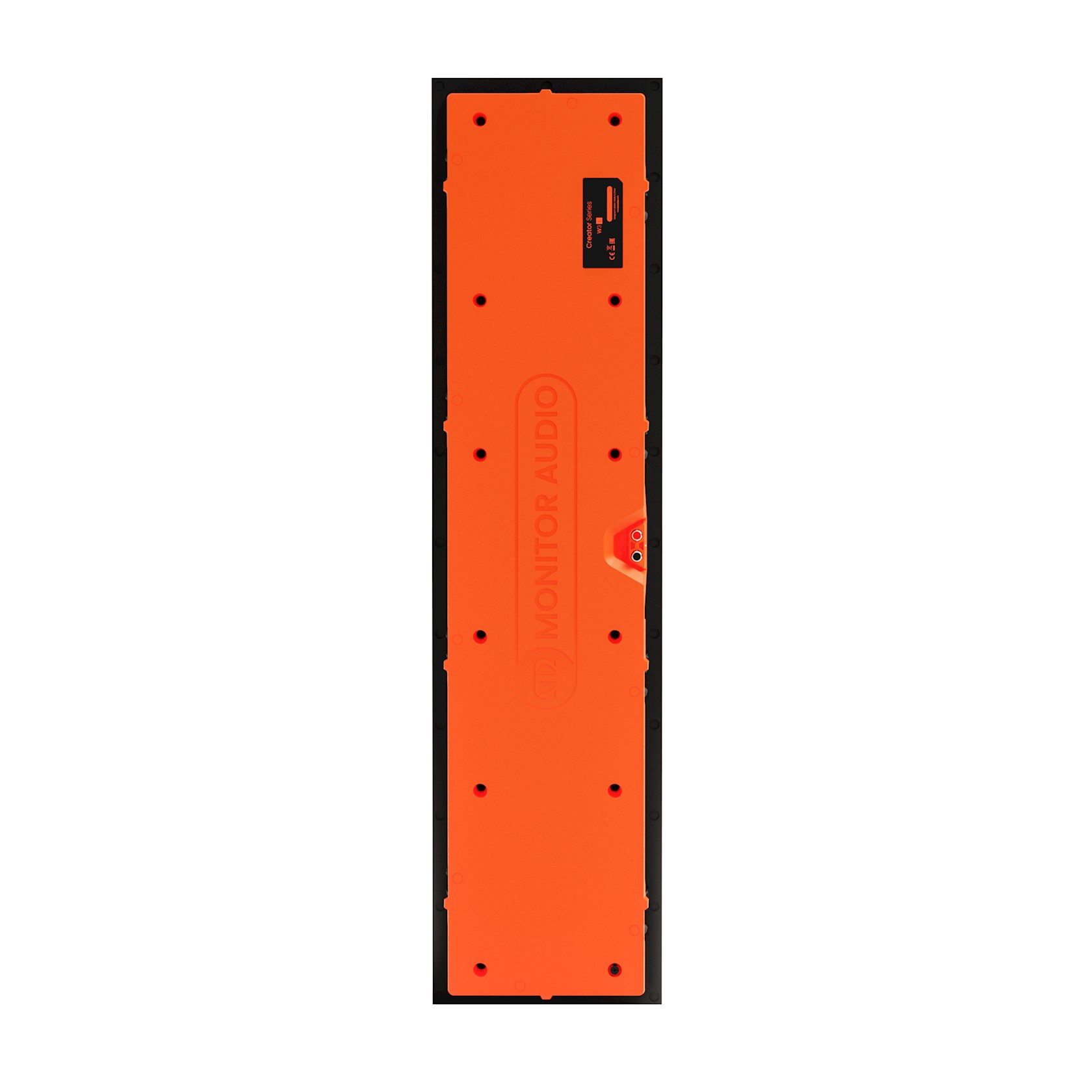

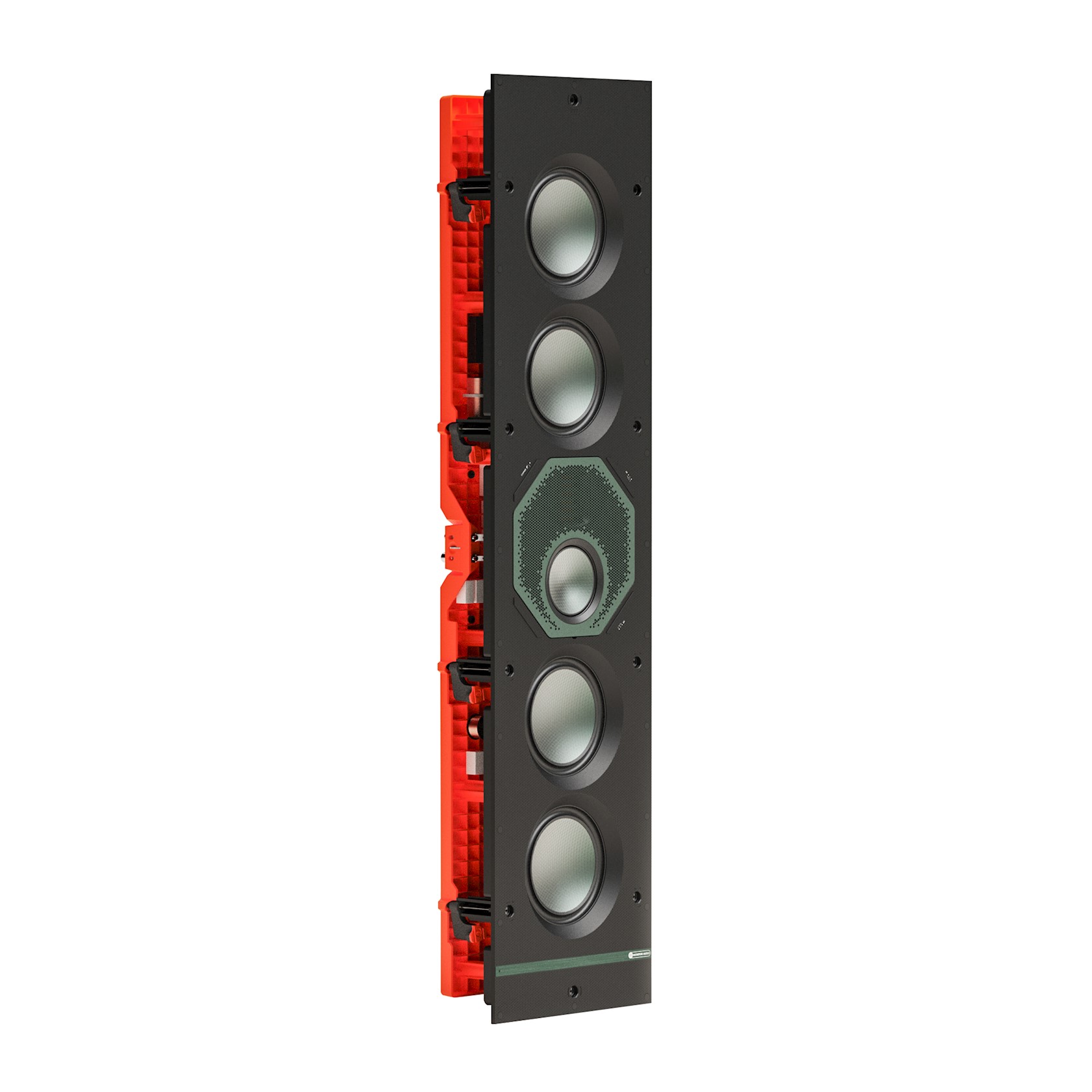

  • Monitor Audio Creator in-wall large speaker (piece)

This high-performance, large-sized Tier 3 in-wall loudspeaker is a three-way model featuring four RDT III bass drivers, a C-CAM midrange driver, and an MPD II transducer. It has a cut-out dimension of 880 x 202 mm and revolutionary Quik-Link speaker cable connector and Tri-Grip II for quick, simple, reliable, and strong installation and fitting.

Features at a glance:
Ideal for installations where high-performance acoustics are desired  | Three-way design  |  1 x 1" MPD II transducer  |  4 x 5" RDT III bass drivers  |  1 x 3" C-CAM midrange driver  |  Quik-Link s

  • System Format:3-Way
  • Frequency Response, Installed (-6 dB): 36 Hz – 60 kHz
  • Nominal Impedance: 4 Ohms
  • Minimum Impedance (20 Hz – 20 kHz): 4.5 Ohm @ 1.2 kHz
  • Sensitivity (2.83 Vrms @ 1 m, Installed): 89 dB
  • Maximum Peak SPL (AES75, Z-Weighted): 123 dB
  • Continuous Power Handling (CTA 426-B): 300 W
  • Recommended Amplifier Power (RMS, Music Signal):150 – 600 W into 4 Ohms, 75 – 300 W into 8 Ohms
  • Drive Unit Complement: 4 x 5" (127 mm) RST II Bass Driver, 1 x 3" (76 mm) RST II Midrange Driver, 1 x 1" (25 mm) C-CAM Tweeter
  • Crossover Frequency: LF/HF: 700 kHz, MF/HF: 3.25 kHz
  • Mounting Depth: 85 mm (3 3/8")
  • Cut-Out (L x W): 880 x 202 mm
  • External Dimensions with All Cccessories Fitted (H x W x D): 909 x 231 x 93 mm
  • Weight (Each): 12.4 kg
  • Pre-Construction Bracket: WL-B
  • Sold As: Single Unit
